Under the current economic development and operation of the construction industry, the technology of building waterproofing materials has basically matured. TPO waterproof membrane, with its outstanding weather resistance, high tensile strength, excellent low-temperature flexibility, excellent waterproof sealing performance and environmental protection and energy-saving features, has injected new vitality into the waterproof membrane field! This material not only effectively prevents leakage but also enhances the energy-saving effect and service life of buildings. It is suitable for various building scenarios and is an indispensable star material in modern building waterproofing projects.
Application of JWELL's intelligent technology in improving product quality and efficiency
1. Robot automatic packet breaking and identification system
– Reduce labor costs
– Improve production efficiency
– Ensure production safety
– Data management and traceability
The system can automatically record the detection time and weight of each bag of raw materials, facilitating data management and analysis for enterprises, and providing a basis for optimizing the production process.
2. Raw material weighing and blending system
It can record data related to each batch of raw materials, such as types, weight, and mixing time, which is convenient for quality tracing and production management, and helps enterprises achieve refined production and quality control.
3. High-precision thickness intelligent control feedback system
Real-time thickness monitoring plus automatic feedback regulation system, realizing intelligent control of the production process, improving product quality and production efficiency.
4. Precise measurement of the thickness of each layer of composite products
Equipped with two sets of thickness gauges to measure the thickness of the composite products before and after lamination. Strict thickness control and accurate measurement data contribute to improving product quality, enhancing market competitiveness, and gaining customer trust and recognition.
5. High-precision intelligent automatic tension feedback system
This system can prevent excessive stretching of the roll during production, improving the dimensional stability of the product.
6. Intelligent detection system
Real-time monitoring of the production process through intelligent detection, automatically marking defective products such as black spots, impurities, insects, and holes, and increasing the pass rate of finished products.
Applicable product structure types
– Homogeneous coil material (i.e., H)
– Fiber backing roll material (i.e., L)
– Internal reinforcing coil (i.e., P)
Main parameters of machine
– Width: 1200—8000mm
– Thickness: 0.8—3.0mm
– Capacity: 1200—3000Kg/h

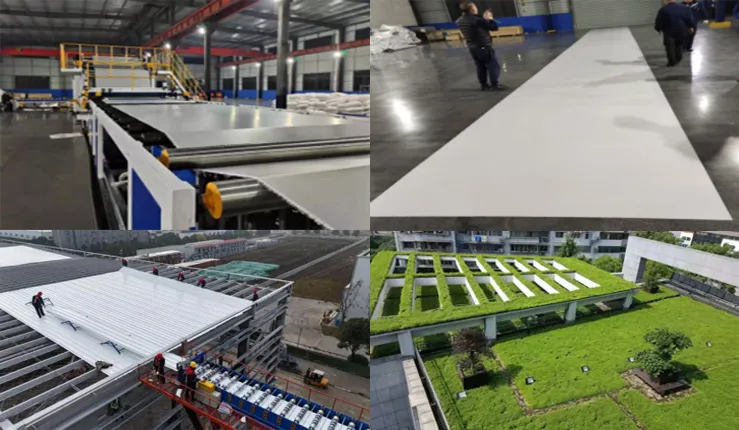

Application
Suitable for waterproof layers of building roofs (both exposed and non-exposed) and waterproofing of easily deformable underground buildings.
Particularly suitable for:
√The first choice of waterproof material for roofs of large industrial plants and public buildings.
√Waterproof and moisture-proof projects such as drinking water reservoirs, bathrooms, basements, tunnels, grain stores, subways, and reservoirs.
Comparison of TPO, PVC, and PE Waterproof Membranes
|
Aspect |
TPO Membrane |
PVC Membrane |
PE Membrane |
|
Material |
Thermoplastic Polyolefin (PP + EPDM) |
Polyvinyl Chloride |
Polyethylene (LDPE/HDPE) |
|
Environmental |
Chlorine-free, no plasticizer, eco-friendly |
Contains chlorine & plasticizers, toxic when burned |
Generally eco-friendly, but may contain additives |
|
Weather Resistance |
Excellent UV, ozone, and aging resistance |
Fair, may degrade under long-term UV exposure |
Poor to fair, vulnerable to UV |
|
Low Temp Flexibility |
Excellent, suitable for cold regions |
Moderate, brittle in low temperatures |
Good |
|
Weldability |
Hot-air welding with strong seams |
Good weldability with hot-air |
Poor, often uses extrusion or overlaps |
|
Ease of Installation |
Easy to install on various substrates |
Relatively easy |
More difficult, complex seams |
|
Chemical Resistance |
Good, resistant to many acids & alkalis |
Fair, some chemicals may affect |
Excellent, widely used in chemical containment |
|
Cost |
Medium to high |
Medium |
Relatively low |
|
Service Life |
≥25 years |
15–20 years |
10–20 years (depending on formulation) |
Jwell Guarantee · Trustworthy

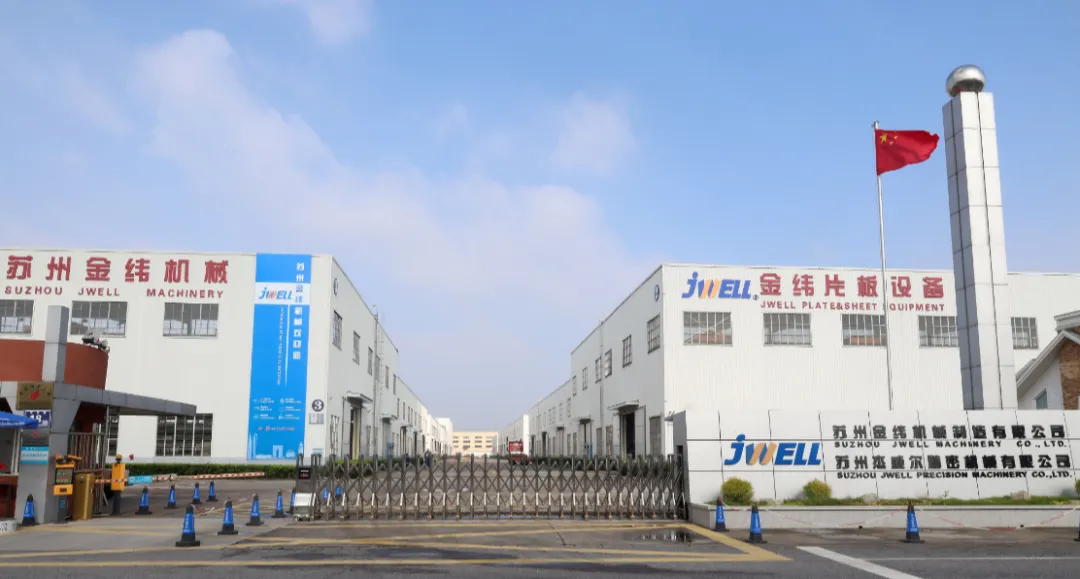

As a global leading manufacturer of polymer extrusion equipment, Suzhou JWELL Machinery is committed to creating intelligent production lines with global competitiveness, focusing on customer needs and technological innovation. The TPO intelligent composite polymer waterproof roll equipment is a strategic achievement that deeply understands the development trend of the construction industry and integrates material science with intelligent manufacturing.
For inquiries about customized solutions and trial machine visits, please contact us to create a future of intelligent manufacturing together!
